🛠️ Installing & Configuring WSUS on Windows Server 2025

Step‑by‑step installation via Server Manager and PowerShell, plus database (WID) and storage setup

In our first post, we covered what WSUS is, why it still matters in 2025, and when to use it. Now it’s time to roll up our sleeves and get it running on Windows Server 2025.

This guide provides two installation paths — the graphical Server Manager method and the faster PowerShell approach — so you can choose what fits your workflow. We’ll also cover database selection (with a strong recommendation for Microsoft WID), storage planning, and the essential post‑installation configuration steps.

Before You Begin: Prerequisites

Ensure your Windows Server 2025 meets these minimum requirements:

• Windows Server 2025 (Standard or Datacenter) — fully updated.
• Administrative privileges — you need local admin rights on the server.
• Internet connectivity — to sync updates from Microsoft Update (or an upstream WSUS server).
• Firewall ports — open TCP 8530 (and optionally 8531 for SSL) for client communication.
• Dedicated storage — at least 50–100 GB for update content (recommended on a separate drive).
• .NET Framework 4.8 — usually installed by default on Server 2025.

Method 1: Install WSUS via Server Manager (GUI)

The graphical approach is great if you prefer a visual workflow or are setting up WSUS in a lab environment. Follow these steps:

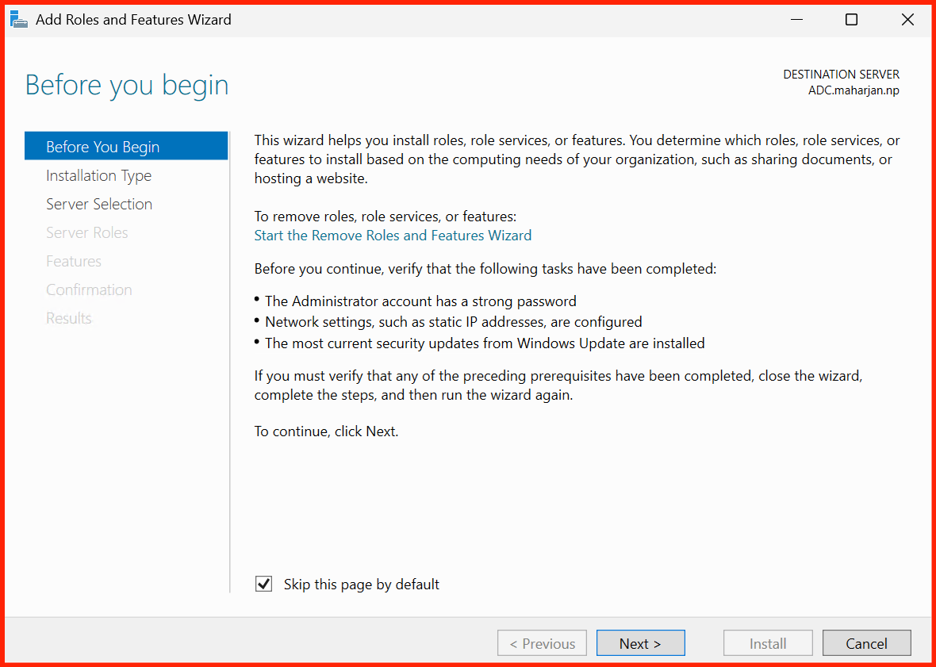

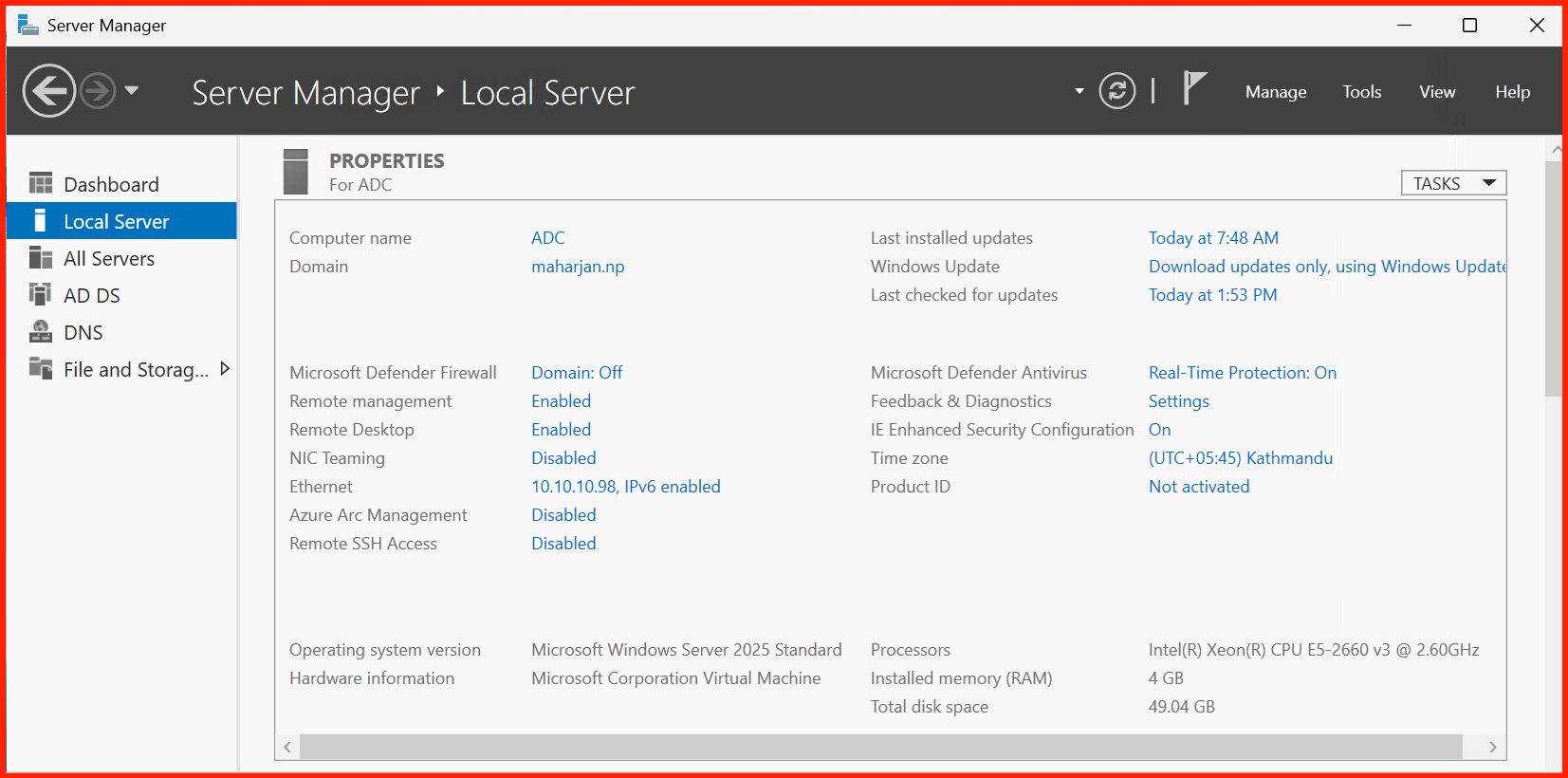

Open Server Manager (it should launch automatically on login, or search for it in the Start menu). Click on Manage → Add Roles and Features.

Choose Role‑based or feature‑based installation, then select your server from the server pool. Click Next.

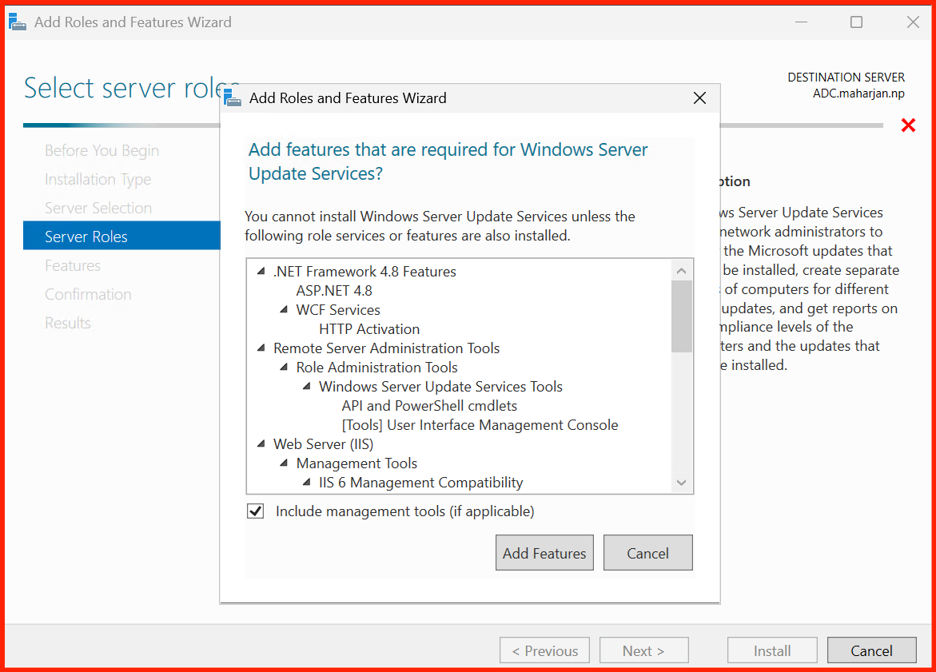

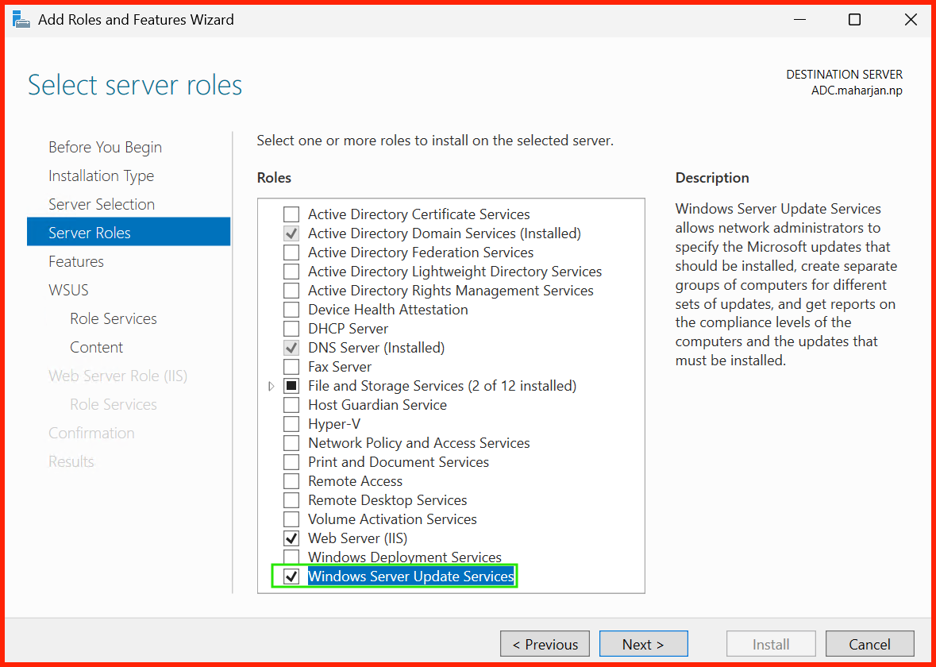

In the Server Roles list, scroll down and check Windows Server Update Services. A pop‑up will ask you to add required features — click Add Features, then Next.

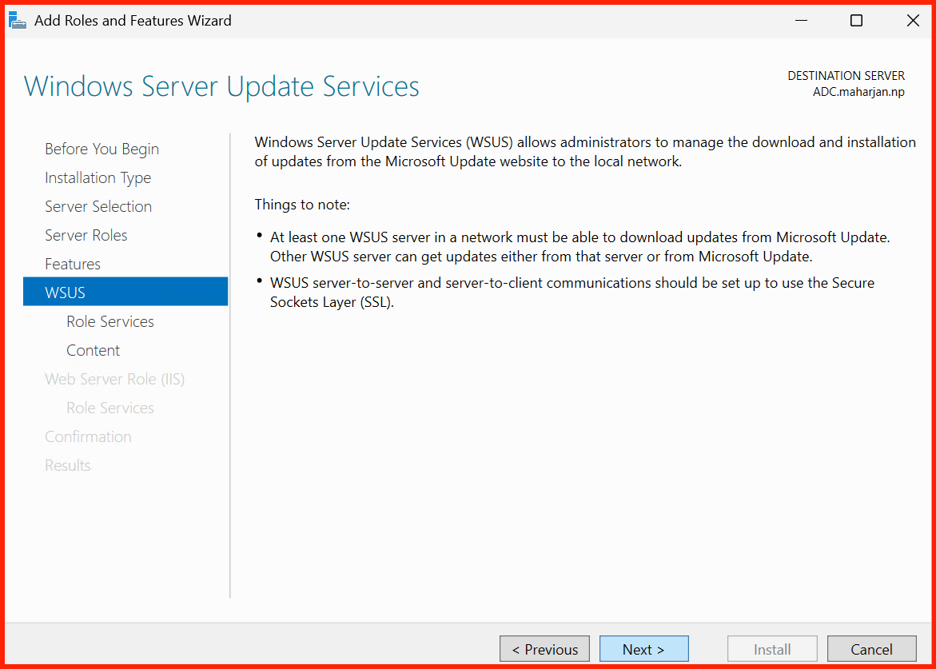

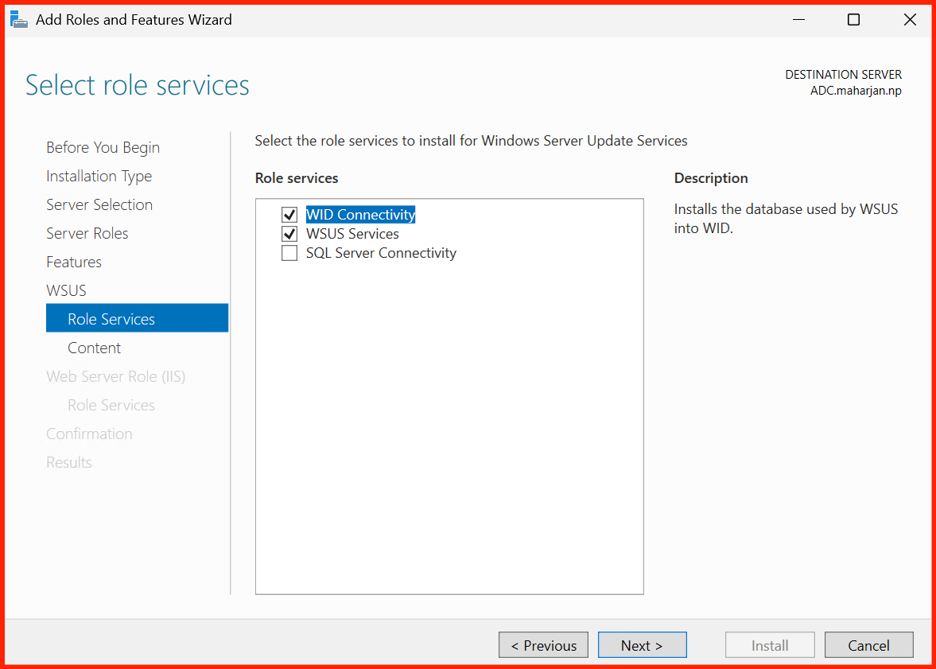

The wizard will prompt you to install WID (Windows Internal Database) and the WSUS Management Console. Keep the default selections and click Next.

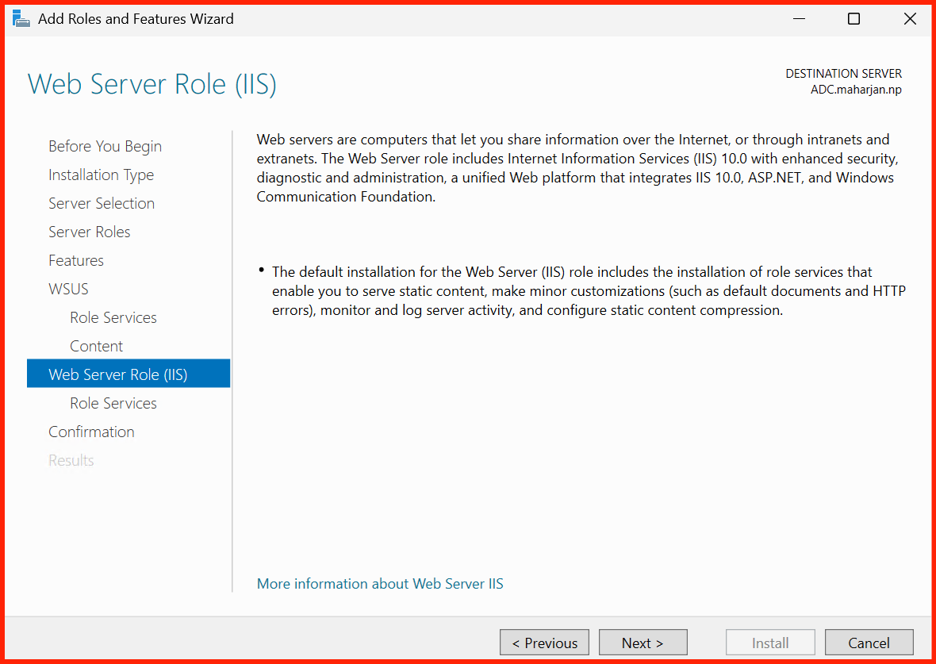

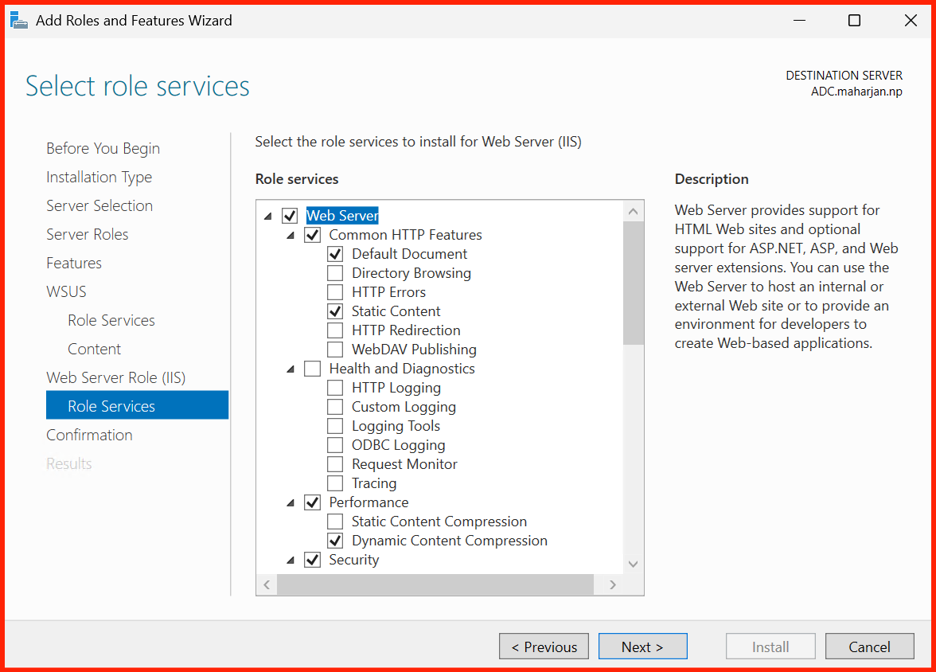

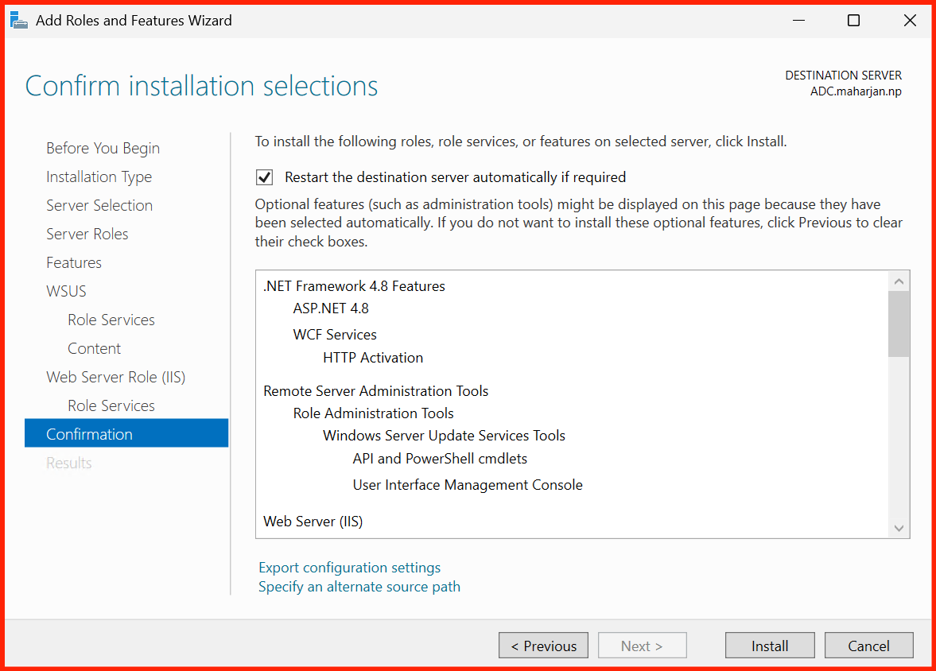

Click through the remaining screens (accept the defaults). On the Confirmation page, check Restart the destination server automatically if required (optional), then click Install.

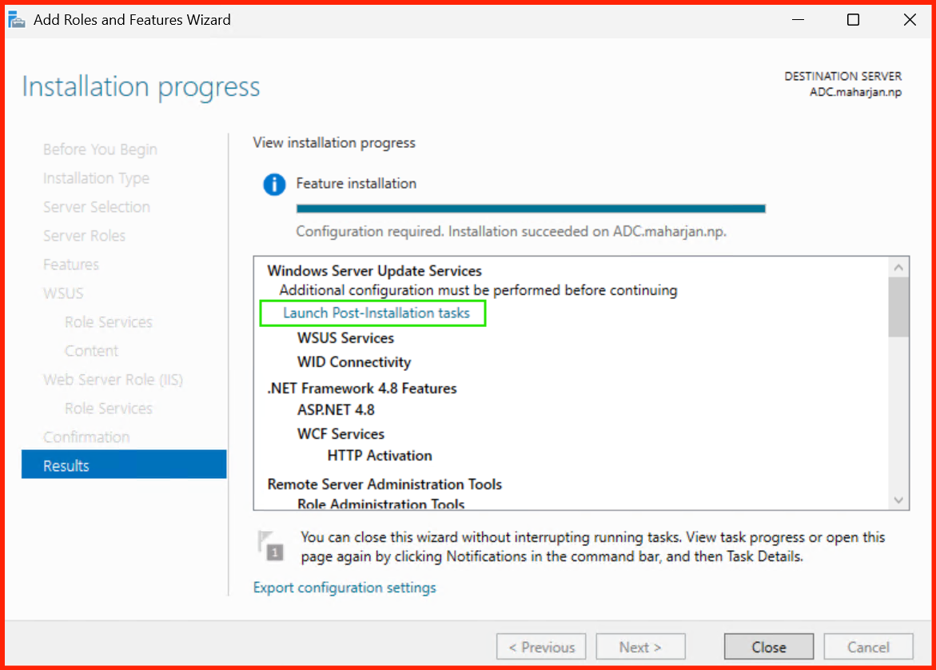

The installation will take a few minutes. Once complete, click Close.

Method 2: Install WSUS via PowerShell (Faster)

For automation or headless servers, PowerShell is the quickest way. Open an elevated PowerShell console (Run as Administrator) and run:

Install-WindowsFeature -Name UpdateServices -IncludeManagementTools

This single command installs the WSUS role, management console, and all required dependencies (including WID).

Post‑Installation: Database & Storage Configuration

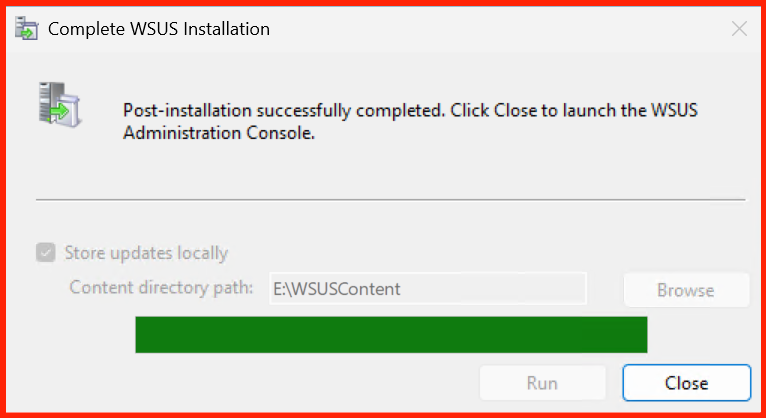

After the role is installed, you must complete the initial configuration using the WSUS Post‑Installation Configuration wizard.

Using the WSUS Configuration Wizard (GUI)

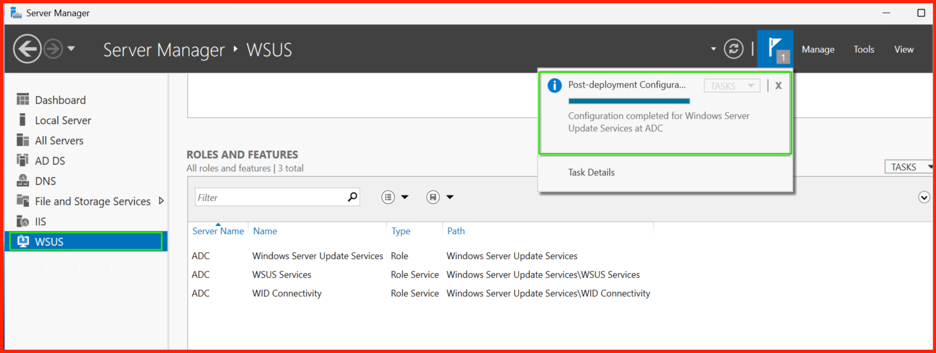

In Server Manager, click the Notifications flag icon (top‑right) and select “Perform post‑installation tasks”.

The wizard will guide you through:

• Choosing the database (WID is already selected).

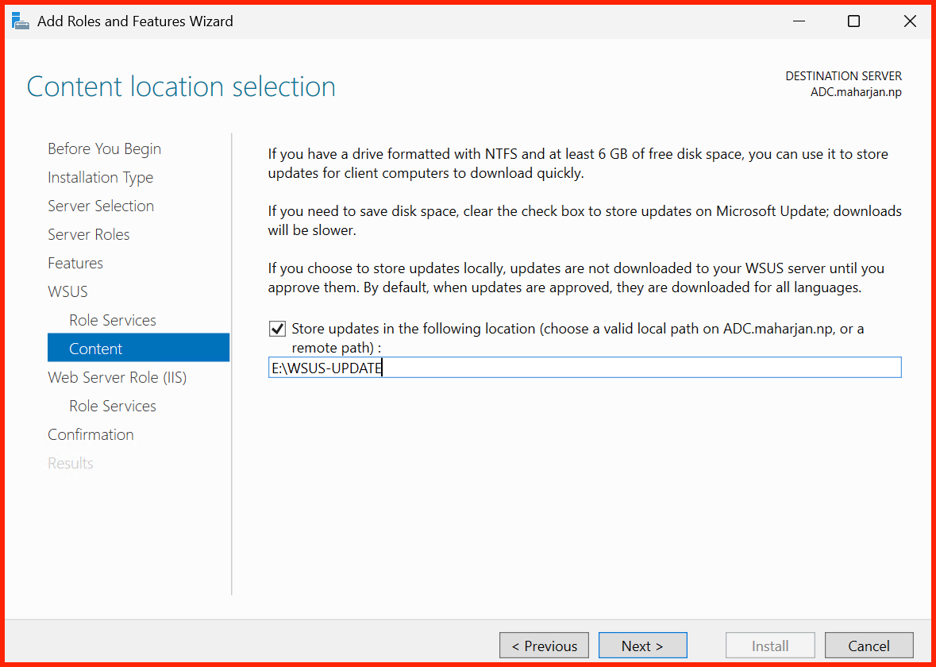

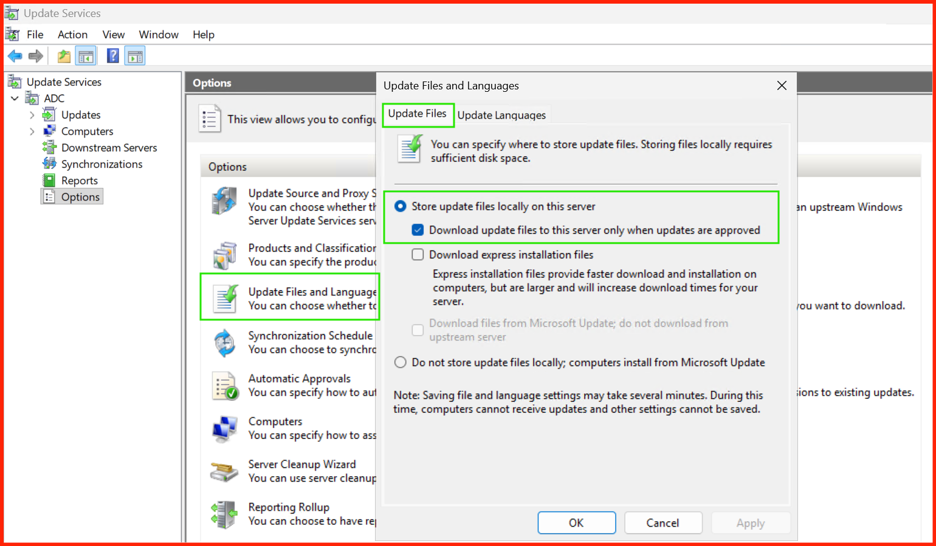

• Setting the content storage path (e.g., E:\WSUSContent).
• Connecting to Microsoft Update to synchronize initial product and classification lists.

Initial Synchronization & Basic Configuration

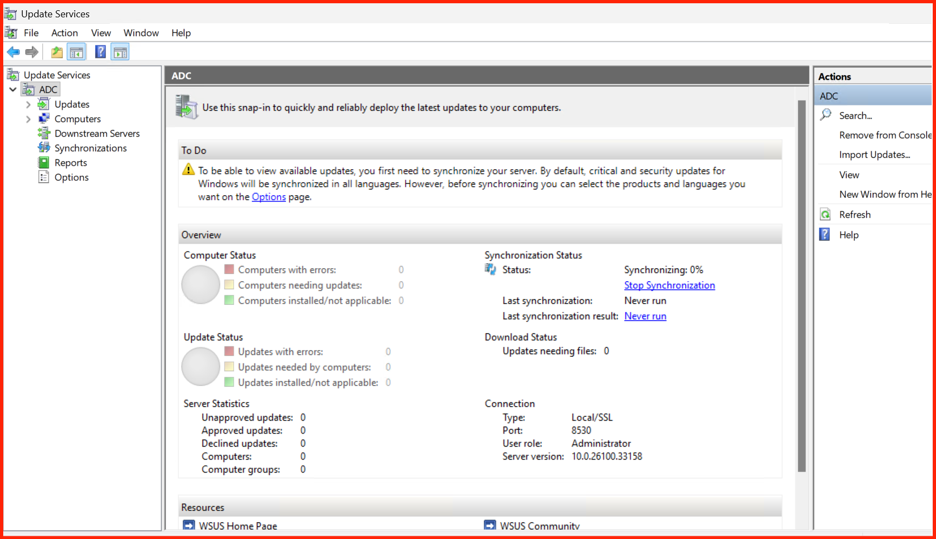

With the database and storage configured, open the WSUS Administration Console (via Server Manager → Tools → Windows Server Update Services).

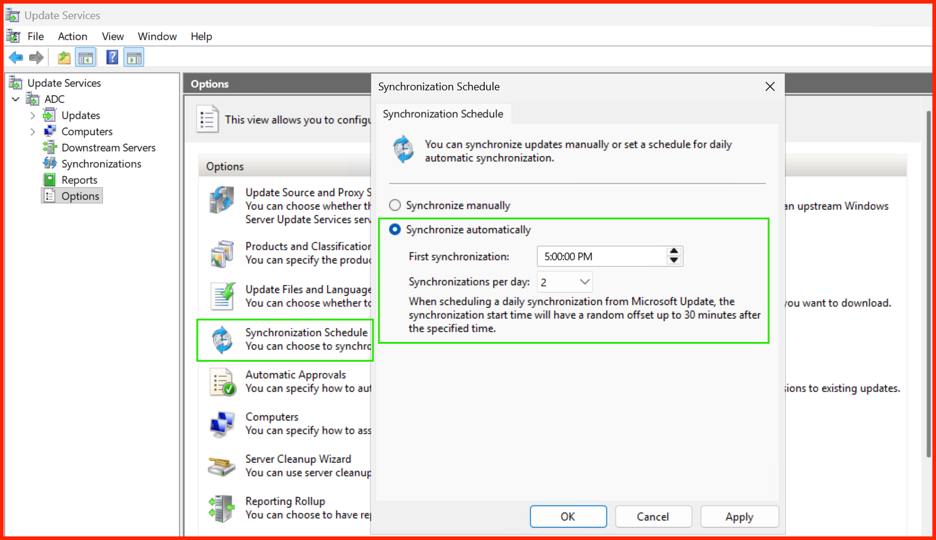

Connect to your WSUS server, and you’ll be prompted to run the Configure Synchronization wizard. Key steps:

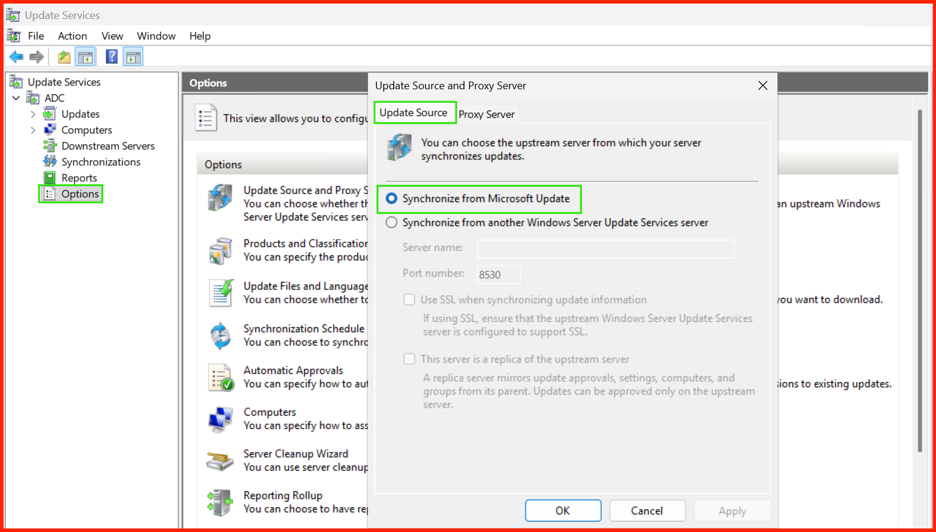

• Upstream Server: Choose “Synchronize from Microsoft Update” (or an upstream WSUS server if in a replica hierarchy).

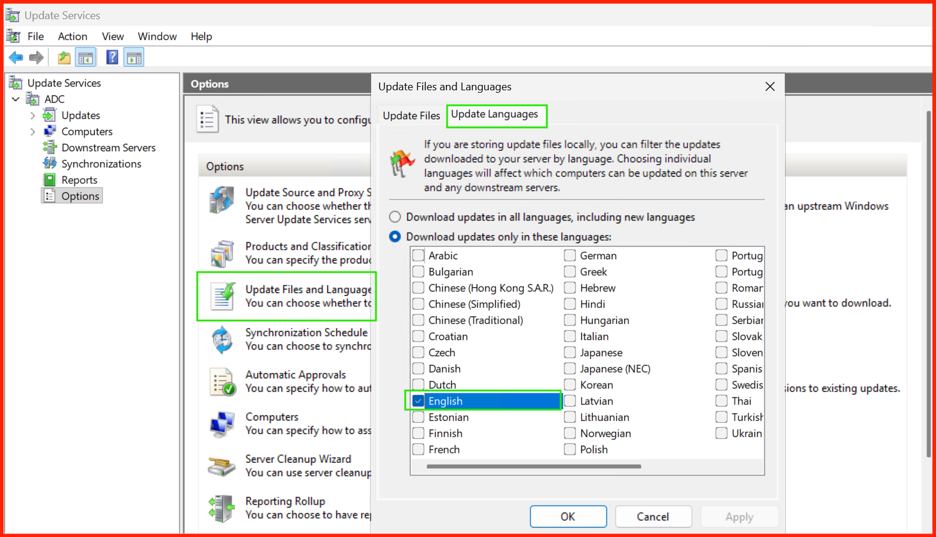

• Products: Select only the products you actually need (e.g., Windows Server 2025, Windows 11, etc.) to reduce database size.

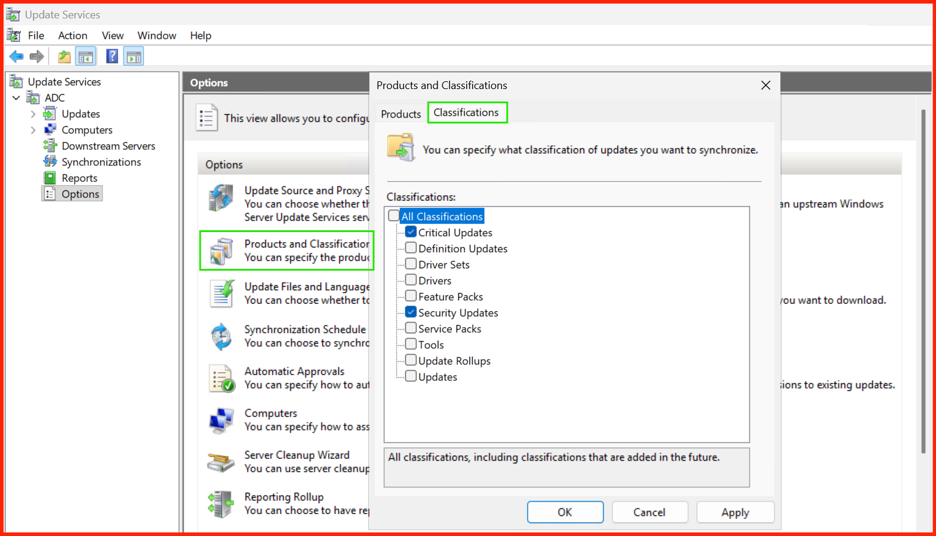

• Classifications: Start with “Critical Updates” and “Security Updates” — you can add more later.

Click Start Synchronization. The first sync can take 30–60 minutes depending on your selections and internet speed. Once complete, you’ll see the update catalog ready for approvals.

Verification: Is WSUS Working?

After the initial sync, check the following to confirm a healthy setup:

• WSUS Console: The “Updates” node shows a list of available updates.
• Computers tab may be empty (clients haven’t reported in yet — that’s normal).
• Content folder: Navigate to your content directory (e.g., E:\WSUS\WSUSContent) — you should see subfolders containing downloaded update binaries.

➡️ What’s Next?
With WSUS installed and synced, the next post will cover Configuring Group Policy for WSUS Clients — getting your domain‑joined devices to point to this server and receive updates.
